A Custom Aluminum Trailer for You


Our aluminum trailers come with stainless steel hardware, torsion axles, surge disc brakes, and tongue jacks. Our disc brakes and sealed bearing systems are warranted for five years. Our sealed LED lights come with a lifetime warranty. Standard trailer features include radial tires and an adjustable winch with a strap. We offer many upgrade options, such as electric over hydraulic brake system, Aluminum wheels, Tuff bunks, side Guides, and Spare tie and mount. We build aluminum trailers for boats from 15 to 36 feet with load capacities ranging from 2,500 to 18,200 lbs.

Driven by Your Joy


For our valued customers like you, your satisfaction is paramount. We use heavy-duty materials and superior craftsmanship to build the best-quality trailers.

TSA2500TS

 It comes standard without brakes but can be added.

  • Boats from 15'-18'
  • Load capacity of 2,500 lbs.
  • Tire size ST205 / 75R14C radials on five-bolt galvanized wheels
  • One 3,750 lb. galvanized steel axle with torsion suspension
  • Maintenance-free sealed bearing system (five-year warranty)
  • Stainless steel fasteners
  • 4.5" aluminum I-beam mainframe and aluminum cross members
  • 2" Bumper Pull Coupler
  • 1,800 lb. single-speed manual winch with strap
  • 4 Bunks in total: 2 long and 2 short and adjustable winch Post/Bracket
  • Sealed marine quality LED lighting (lifetime warranty)

TSA2500TL

It comes standard without brakes but can be added.


  • Boats from 18'-20'
  • Load capacity of 2,500 lbs.
  • Tire size ST205 / 75R14C radials on five-bolt galvanized wheels
  • One 3,750 lb. galvanized steel axle with torsion suspension
  • Maintenance-free sealed bearing system (five-year warranty)
  • Stainless steel fasteners
  • 5.5" aluminum I-beam mainframe and aluminum cross members
  • 2" Bumper Pull Coupler
  • 1,800 lb. single-speed manual winch with strap
  • 4 Bunks in total: 2 long and 2 short and adjustable winch Post/Bracket
  • Sealed marine quality LED lighting (lifetime warranty)

TSA3000TS

  • Boats from 15'-18'
  • Load capacity of 3,000 lbs.
  • Tire size ST205 / 75R15C radials on five-bolt galvanized wheels
  • One 3,750 lb. galvanized steel axle with torsion suspension
  • Disc brakes on all wheels
  • Maintenance-free sealed bearing system (five-year warranty)
  • Stainless steel fasteners
  • 4.5" aluminum I-beam mainframe and aluminum cross members
  • 2" Surge Brake Actuator with backup solenoid and manual lockout
  • 1,800 lb. single-speed manual winch with strap
  • 4 Bunks in total: 2 long and 2 short and adjustable winch Post/Bracket
  • Sealed marine quality LED lighting (lifetime warranty)

TSA3000TL

  • Boats from 18'-20'
  • Load capacity of 3,000 lbs.
  • Tire size ST205 / 75R15C radials on five-bolt galvanized wheels
  • One 3,750 lb. galvanized steel axle with torsion suspension
  • Disc brakes on all wheels
  • Maintenance-free sealed bearing system (five-year warranty)
  • Stainless steel fasteners
  • 4.5" aluminum I-beam mainframe and aluminum cross members
  • 2" Surge Brake Actuator with backup solenoid and manual lockout
  • 1,800 lb. single-speed manual winch with strap
  • 4 Bunks in total: 2 long and 2 short and adjustable winch Post/Bracket
  • Sealed marine quality LED lighting (lifetime warranty)

TSA4000TS

  • Boats from 18'-20'
  • Load capacity of 4,000 lbs.
  • Tire size ST225 / 75R15D radials on six-bolt galvanized wheels
  • One 6,000 lb. galvanized steel axle with torsion suspension
  • Maintenance-free sealed bearing system (five-year warranty)
  • Disc brakes on all wheels
  • Stainless steel fasteners
  • 5.5" aluminum I-beam mainframe and aluminum cross members
  • 2" Surge Brake Actuator with backup solenoid and manual lockout
  • 1,800 lb. single-speed manual winch with strap
  • 4 Bunks in total: 2 long and 2 short and adjustable winch Post/Bracket
  • Sealed marine quality LED lighting (lifetime warranty)

TSA4000TL

  • Boats from 20'-22'
  • Load capacity of 4,000 lbs.
  • Tire size ST225 / 75R15D radials on six-bolt galvanized wheels
  • One 6,000 lb. galvanized steel axle with torsion suspension
  • Maintenance-free sealed bearing system (five-year warranty)
  • Disc brakes on all wheels
  • Stainless steel fasteners
  • 5.5" aluminum I-beam mainframe and aluminum cross members
  • 2" Surge Brake Actuator with backup solenoid and manual lockout
  • 1,800 lb. single-speed manual winch with strap
  • 4 Bunks in total: 2 long and 2 short and adjustable winch Post/Bracket
  • Sealed marine quality LED lighting (lifetime warranty)

TSA5000T

  • Boats from 20'-22'
  • Load capacity of 5,000 lbs.
  • Tire size 205 / 75R14C radials on five-bolt galvanized wheels
  • Two 3,750 lb. galvanized steel axles with torsion suspension
  • Disc brakes on all wheels
  • Maintenance-free sealed bearing system (five-year warranty)
  • Stainless steel fasteners
  • 5.5" aluminum I-beam mainframe and aluminum cross members
  • 2" Surge Brake Actuator with backup solenoid and manual lockout
  • 3,200 lb. manual two-speed winch with strap
  • 4 Bunks in total: 2 long and 2 short and adjustable winch Post/Bracket
  • Sealed marine quality LED lighting (lifetime warranty)

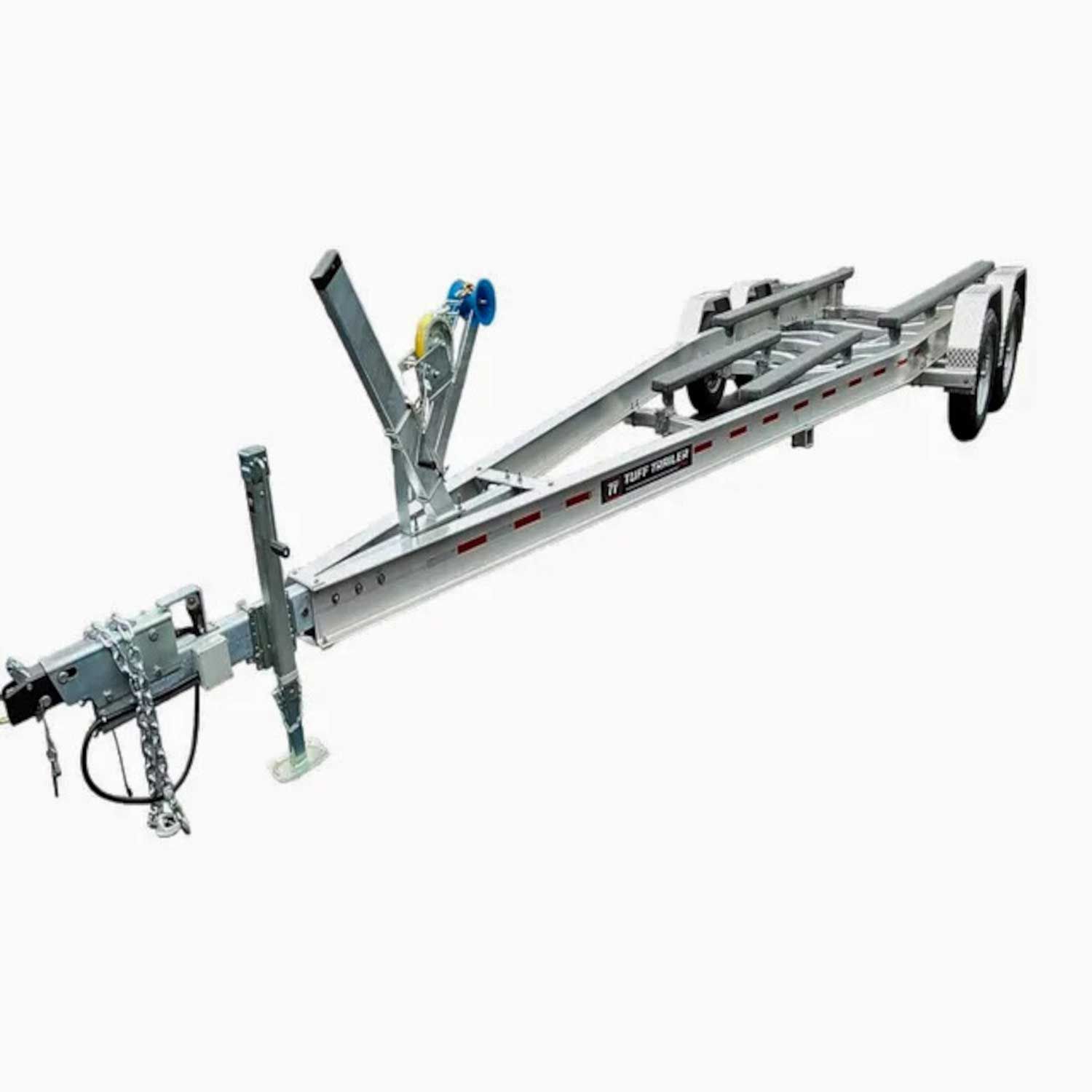

TSA6000T

  • Boats from 22'-24'
  • Load capacity of 6,000 lbs.
  • Tire size 205 / 75R14C radials on five-bolt galvanized wheels
  • Two 3,750 lb. galvanized steel axles with torsion suspension
  • Maintenance-free sealed bearing system (five-year warranty)
  • Disc brakes on all wheels
  • Stainless steel fasteners
  • 6.5" aluminum I-beam mainframe and aluminum cross members
  • 2" Surge Brake Actuator with backup solenoid and manual lockout
  • 3,200 lb. manual two-speed winch with strap
  • Four adjustable pivoting carpeted bunks and adjustable winch Post/Bracket
  • Sealed marine quality LED lighting (lifetime warranty)

TSA7000T

  • Boats from 22'-24'
  • Load capacity of 7,000 lbs.
  • Tire size ST225 / 75R15E radials on six-bolt galvanized wheels
  • Surge disc brakes on all wheels
  • Maintenance-free sealed bearing system (five-year warranty)
  • Two 6,000 lb. galvanized steel axles with torsion suspension
  • Stainless steel fasteners
  • 6.5" aluminum I-beam mainframe and aluminum cross members
  • 2 5/16" Surge Brake Actuator with backup solenoid and manual lockout
  • 3,200 lb. manual two-speed winch with strap
  • Four adjustable pivoting carpeted bunks and adjustable winch Post/Bracket
  • Sealed marine quality LED lighting (lifetime warranty)

TSA8500T

  • Boats from 24'-26'
  • Load capacity of 8,500 lbs.
  • Tire size ST225 / 75R15E radials on six-bolt galvanized wheels
  • Disc brakes on all wheels
  • Maintenance-free sealed bearing system (five-year warranty)
  • Two 6,000 lb. galvanized steel axles with torsion suspension
  • Stainless steel fasteners
  • 7.5" aluminum I-beam mainframe and aluminum cross members
  • 2 5/16" Surge Brake Actuator with backup solenoid and manual lockout
  • 3,200 lb. manual two-speed winch with strap
  • Four adjustable pivoting carpeted bunks and adjustable winch Post/Bracket
  • Sealed marine quality LED lighting (lifetime warranty)

TSA10000T


  • Boats from 26'-28
  • Load capacity of 10,000 lbs.
  • Tire size ST235 / 80R16E radials on six-bolt galvanized wheels
  • Two 6,000 lb. galvanized steel axles with torsion suspension
  • Maintenance-free sealed bearing system (five-year warranty)
  • Disc brakes on all wheels
  • Stainless steel fasteners
  • 7.5" aluminum I-beam mainframe and aluminum cross members
  • 2 5/16" Surge Brake Actuator with backup solenoid and manual lockout
  • 3,200 lb. manual two-speed winch with strap
  • Four adjustable pivoting carpeted bunks and adjustable winch Post/Bracket
  • Sealed marine quality LED lighting (lifetime warranty)

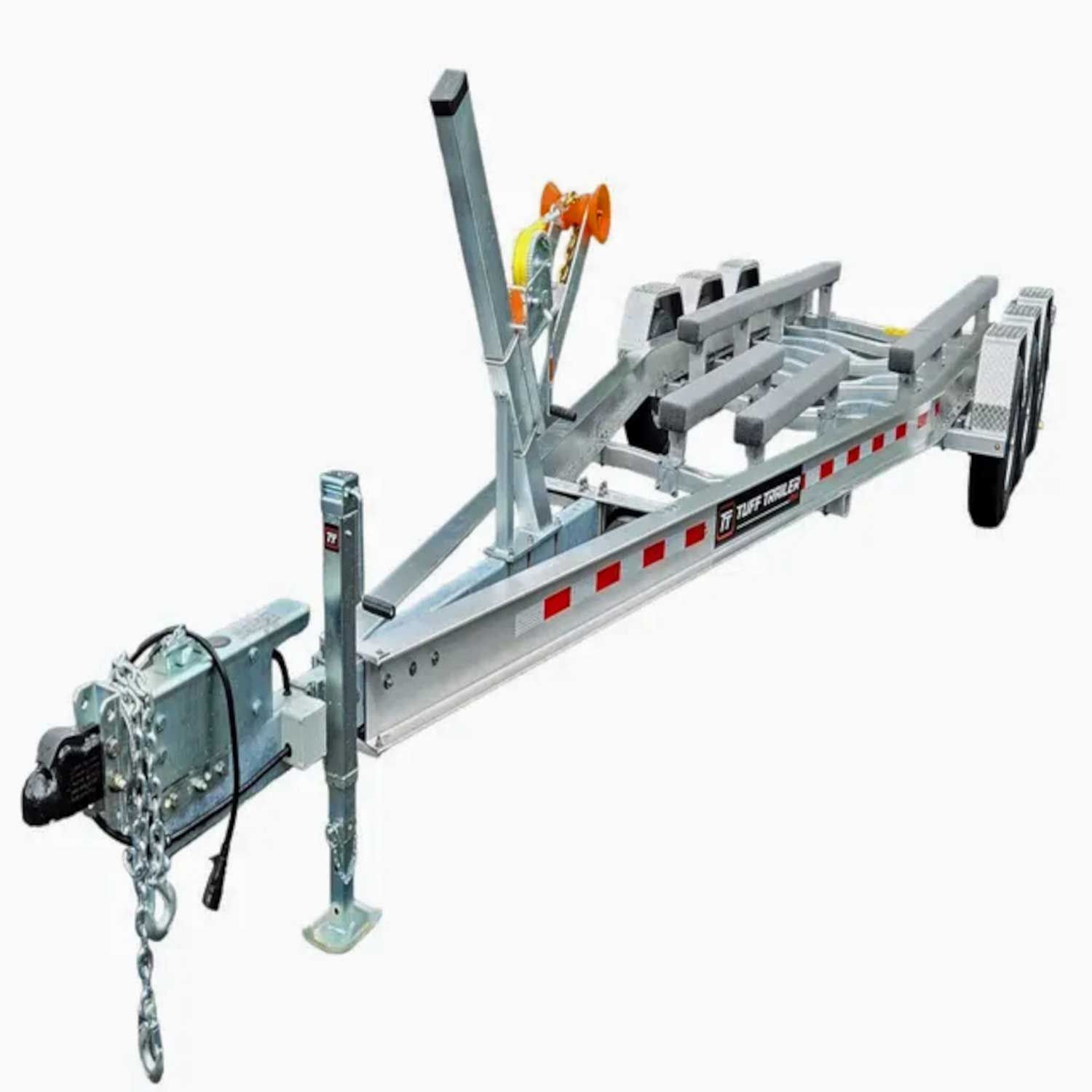

TTA9000T



  • Boats from 26'-28
  • Load capacity of 9,000 lbs.
  • Tire size ST215 /75R14C radials on five-bolt galvanized wheels
  • Three 3,750 lb. galvanized steel axles with torsion suspension
  • Maintenance-free sealed bearing system (five-year warranty)
  • Disc brakes on all wheels
  • Stainless steel fasteners
  • 7.5" aluminum I-beam mainframe and aluminum cross members
  • 2 5/16" Surge Brake Actuator with backup solenoid and manual lockout
  • 3,200 lb. manual two-speed winch with strap
  • Four adjustable pivoting carpeted bunks and adjustable winch Post/Bracket
  • Sealed marine quality LED lighting (lifetime warranty)

TTA13000TS

  • Boats from 25'-28'
  • Load capacity of 13,000 lbs.
  • Tire size ST225 / 75R15E radials on six-bolt galvanized wheels
  • Three 6,000 lb. galvanized steel axles with torsion suspension
  • Maintenance-free sealed bearing system (five-year warranty)
  • Surge Disc brakes on all wheels
  • Stainless steel fasteners
  • 7.5" aluminum I-beam mainframe and aluminum cross members
  • 2 5/16" surge brake coupler with backup solenoid and manual lockout
  • 3,200 lb. manual two-speed winch with strap
  • Four adjustable pivoting carpeted bunks and adjustable winch Post/Bracket
  • Sealed marine quality LED lighting (lifetime warranty)

TTA13000TL

  • Boats from 28'-30'
  • Load capacity of 13,000 lbs.
  • Tire size ST225 / 75R15E radials on six-bolt galvanized wheels
  • Three 6,000 lb. galvanized steel axles with torsion suspension
  • Maintenance-free sealed bearing system (five-year warranty)
  • Surge disc brakes on all wheels
  • Stainless steel fasteners
  • 7.5" aluminum I-beam mainframe and aluminum cross members
  • 2 5/16" surge brake coupler with backup solenoid and manual lockout
  • 3,200 lb. manual two-speed winch with strap
  • Four adjustable pivoting carpeted bunks and adjustable winch Post/Bracket
  • Sealed marine quality LED lighting (lifetime warranty)

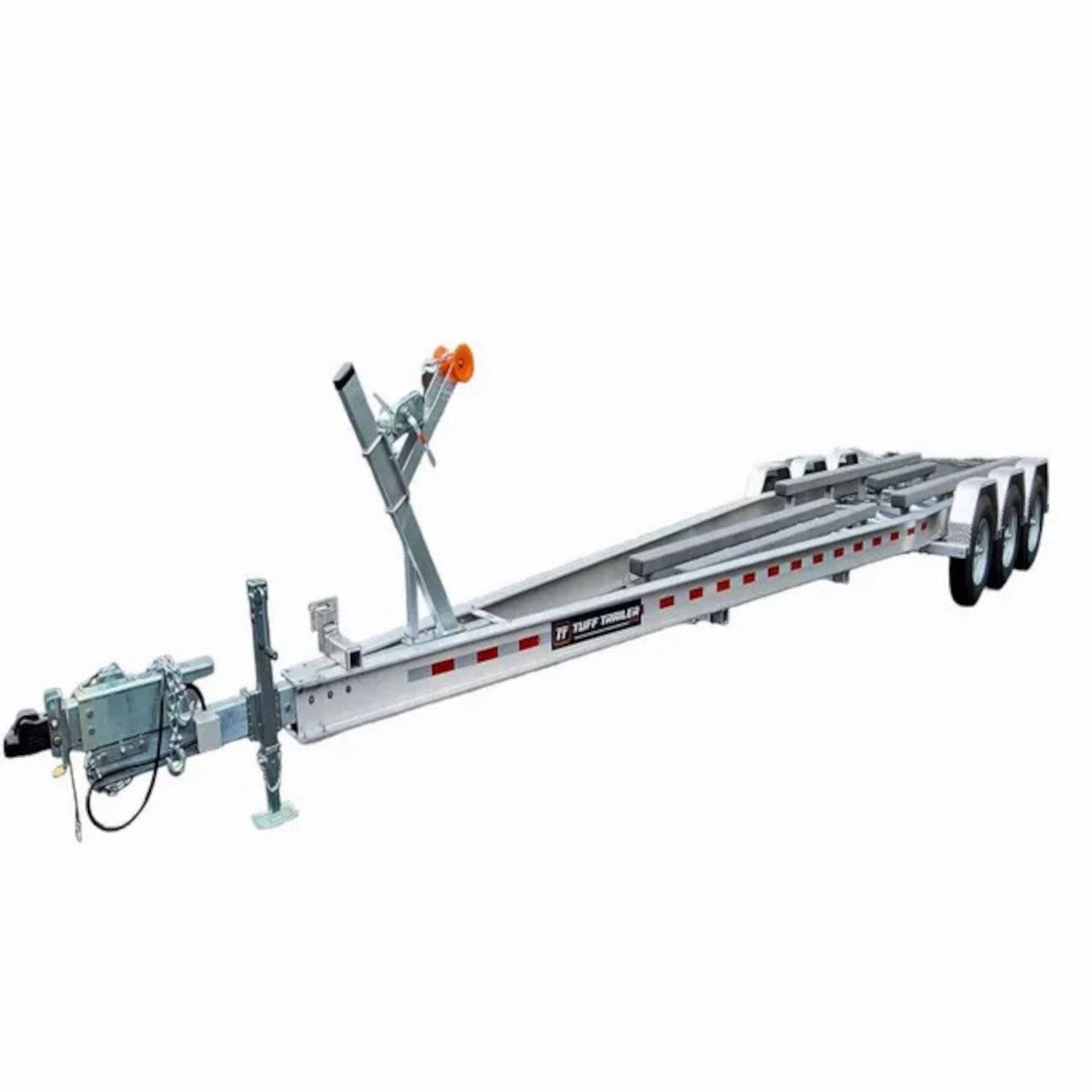

TTA15600T


  • Boats from 30'-33
  • Load capacity of 15,600 lbs.
  • Tire size ST235/80R16E radials on six-bolt galvanized wheels
  • Three 6,000 lb. galvanized steel axles with torsion suspension
  • Maintenance-free sealed bearing system (five-year warranty)
  • Disc brakes on all wheels
  • Stainless steel fasteners
  • 8" aluminum I-beam mainframe and aluminum cross members
  • 2 5/16" Surge Brake Actuator with backup solenoid and manual lockout
  • 3,500 lb. manual two-speed winch with strap
  • Six adjustable pivoting carpeted bunks and adjustable winch Post/Bracket
  • Sealed marine quality LED lighting (lifetime warranty)

TTA17200T

  • Boats from 30'-33'
  • Load capacity of 17,200 lbs.
  • Tire size ST235 / 80R16E radials on eight-bolt galvanized wheels
  • Three 7,000 lb. galvanized steel axles with torsion suspension
  • Maintenance-free sealed bearing system (five-year warranty)
  • Disc brakes on all wheels
  • Stainless steel fasteners
  • 9" aluminum I-beam mainframe and aluminum cross members
  • 2 5/16" surge brake coupler with backup solenoid and manual lockout
  • 3,500 lb. manual two-speed winch with strap
  • Six adjustable pivoting carpeted bunks and adjustable winch Post/Bracket
  • Sealed marine quality LED lighting (lifetime warranty)

TTA18200T

  • Boats from 30'-33'
  • Load capacity of 18,200 lbs.
  • Tire size ST235 / 80R16E radials on eight-bolt galvanized wheels
  • Three 7,000 lb. galvanized steel axles with torsion suspension
  • Maintenance-free sealed bearing system (five-year warranty)
  • Disc brakes on all wheels (five-year warranty)
  • Stainless steel fasteners
  • 10" aluminum I-beam mainframe and aluminum cross members
  • Lunette Ring Surge Brake Actuator with backup solenoid/ manual lockout
  • 3,500 lb. manual two-speed winch with strap
  • Six adjustable pivoting carpeted bunks and adjustable winch Post/Bracket
  • Sealed marine quality LED lighting (lifetime warranty)
